MoRI UMBP

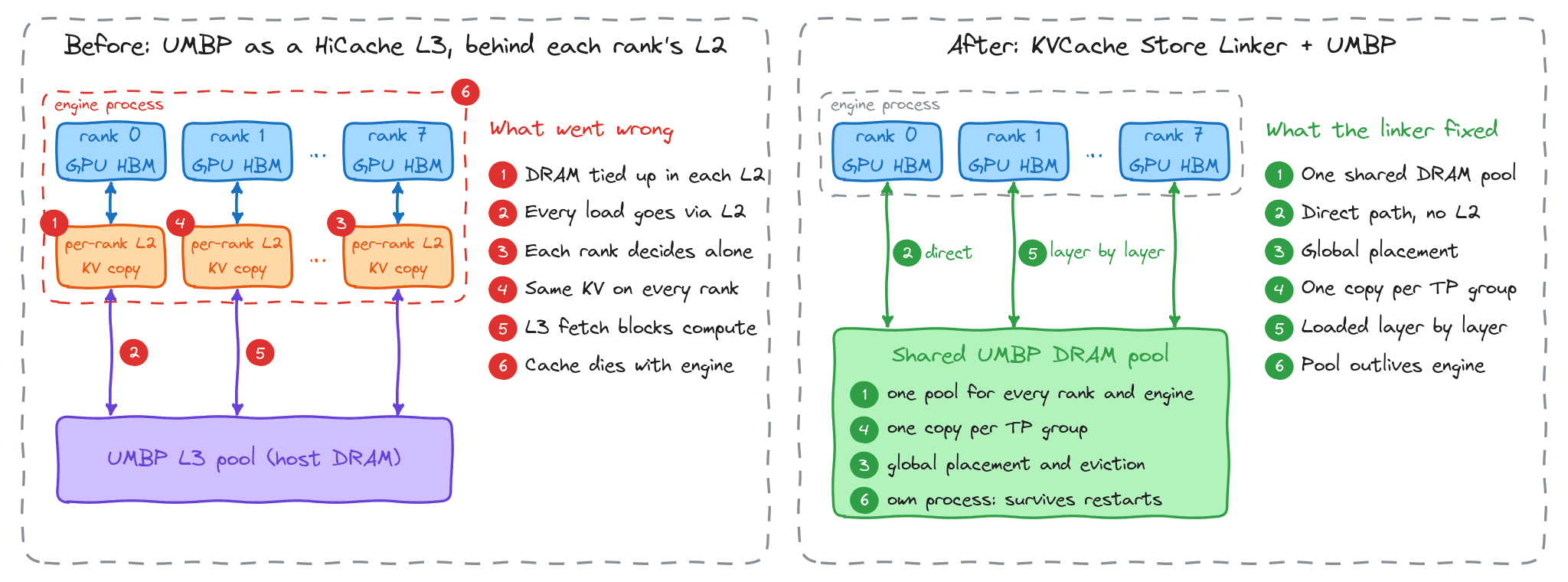

UMBP first reached SGLang as a HiCache L3 storage backend, sitting behind a separate L2 host cache on every GPU rank. Running it that way on AgentX exposed six problems, numbered on the left of the figure below. The right side shows, with the same numbers, how the redesign described next fixes each one.

AMD proposed skipping the per-GPU host cache altogether, which matched where the SGLang community was already heading. The MoRI team and SGLang maintainers then built the KVCache Store Linker together, with UMBP supported as a first-class backend alongside HiCache. The linker lets SGLang read cached KV straight from a shared pool in CPU memory and load it into the GPU layer by layer, so the model can start computing before the whole prefix has arrived. The pool can also run as its own process on each machine, so it keeps its contents when the inference engine restarts or is upgraded, and several engine instances can share it.

The linker also stops storing the same data several times. With models like DeepSeek-V4, every GPU in a tensor-parallel group keeps an identical copy of the KV cache, so an 8-GPU group used to write eight copies to CPU memory. Now it writes one: the same memory holds eight times as much cache, and eight times less data moves between CPU memory and the GPUs. A change still under review goes further: instead of every GPU loading the full copy back, each loads a slice and the GPUs exchange the pieces with each other.

The gain appears even when the DRAM tier is barely used. HBM already served about 95.6% of prompt tokens at concurrency 128–256 and DRAM less than 1%. Turning UMBP on still raised throughput per GPU by 8.3% and cut P90 TTFT by 35% at concurrency 256, and by 2.7% and 34% at concurrency 128. With UMBP off, the host KV pool filled to 72% and 100% while serving at most 0.1% of prompt tokens, so the improvement comes from the direct path rather than from offload.

A large enough cache then changes the topology. Once deduplicated DRAM holds the KV, prefill no longer needs TP8 just for capacity: at concurrency 16–48 the recipe runs a TP4 prefill with a TP8 decode on 12 GPUs instead of 16. UMBP served 34%, 71%, and 75% of prompt tokens at concurrency 16, 32, and 48 while fewer than 3% were recomputed, and throughput per GPU rose 26–34% on 25% fewer GPUs.

Further SGLang optimizations for DeepSeek-V4-Pro on MI355X build on top of UMBP, raising throughput per GPU at concurrency 256 from 55.8k to 62.0k and extending the curve to concurrency 384 and 512. The full configuration is in the October 4 sweep linked below.
