DeepSeek V4 Pro 0813 1.6T · Speculative decoding

B200 FP4: MTP vs Off speculative decoding

Speculative decoding comparison of MTP versus Off on B200 FP4 (NVIDIA Blackwell) running DeepSeek V4 Pro 0813 1.6T. Throughput, cost, and interactivity differences across LLM workloads. Use the chart controls below to switch sequences and metrics — same interactions as the main inference chart.

MTP acceptance-rate comparability

MTP acceptance-rate implementations differ across inference engines. Points from different engines are not directly comparable on the same curve — throughput and cost at matched interactivity may reflect engine-level differences rather than pure speculative decoding gains. Interpret cross-engine comparisons with caution.

Throughput at 33 tok/s/user on DeepSeek V4 Pro 0813 1.6T (B200 FP4): MTP hits 7,983 tok/s/chip, Off hits 7,345. Costs per million tokens land at $0.060 and $0.065 respectively. MTP delivers 9% more tok/s/chip on the same chip, which makes it 8% cheaper per token. Speculative decoding trades extra compute on draft tokens for fewer decoding steps — the payoff depends on sequence length and batch size.

Around the middle of the 10–103 tok/s/user interactivity band, at 57 tok/s/user on DeepSeek V4 Pro 0813 1.6T (B200 FP4): MTP runs 7,698 tok/s/chip at $0.062 per million tokens, Off runs 1,640 at $0.29. MTP delivers 4.7× the tok/s/chip on the same chip, which makes it 79% cheaper per token. Gains from speculative decoding vary by workload; short-output prompts tend to benefit less.

At 80 tok/s/user on DeepSeek V4 Pro 0813 1.6T (B200 FP4), MTP delivers 4,008 tok/s/chip at $0.12 per million tokens; Off delivers 965 tok/s/chip at $0.50. MTP delivers 4.2× the tok/s/chip on the same chip, which makes it 76% cheaper per token. Speculative decoding accepts draft tokens to reduce per-token latency — gains vary by workload and prompt distribution. (Numbers reflect this URL's pinned 8k/1k · fp4 workload — changing sequence or model updates both the table and chart; the table stays pinned to this page's precision, so precision toggles in the controls affect the chart only.)

Interpolated from real benchmark data. Edit target interactivity values below to compare at different operating points.

Metric
Interactivity (tok/s/user)
Interactivity (tok/s/user)
Interactivity (tok/s/user)
Throughput (tok/s/chip)
MTP7,983Off7,345
MTP7,698Off1,640
MTP4,008Off965
Cost ($/M tok)
MTP$0.060Off$0.065
MTP$0.062Off$0.29
MTP$0.12Off$0.50
tok/s/MW
MTP4,668,477Off4,295,314
MTP4,501,550Off958,773
MTP2,343,617Off564,176
Concurrency
MTP~6,144Off~1,299
MTP~4,202Off~57
MTP~256Off~60

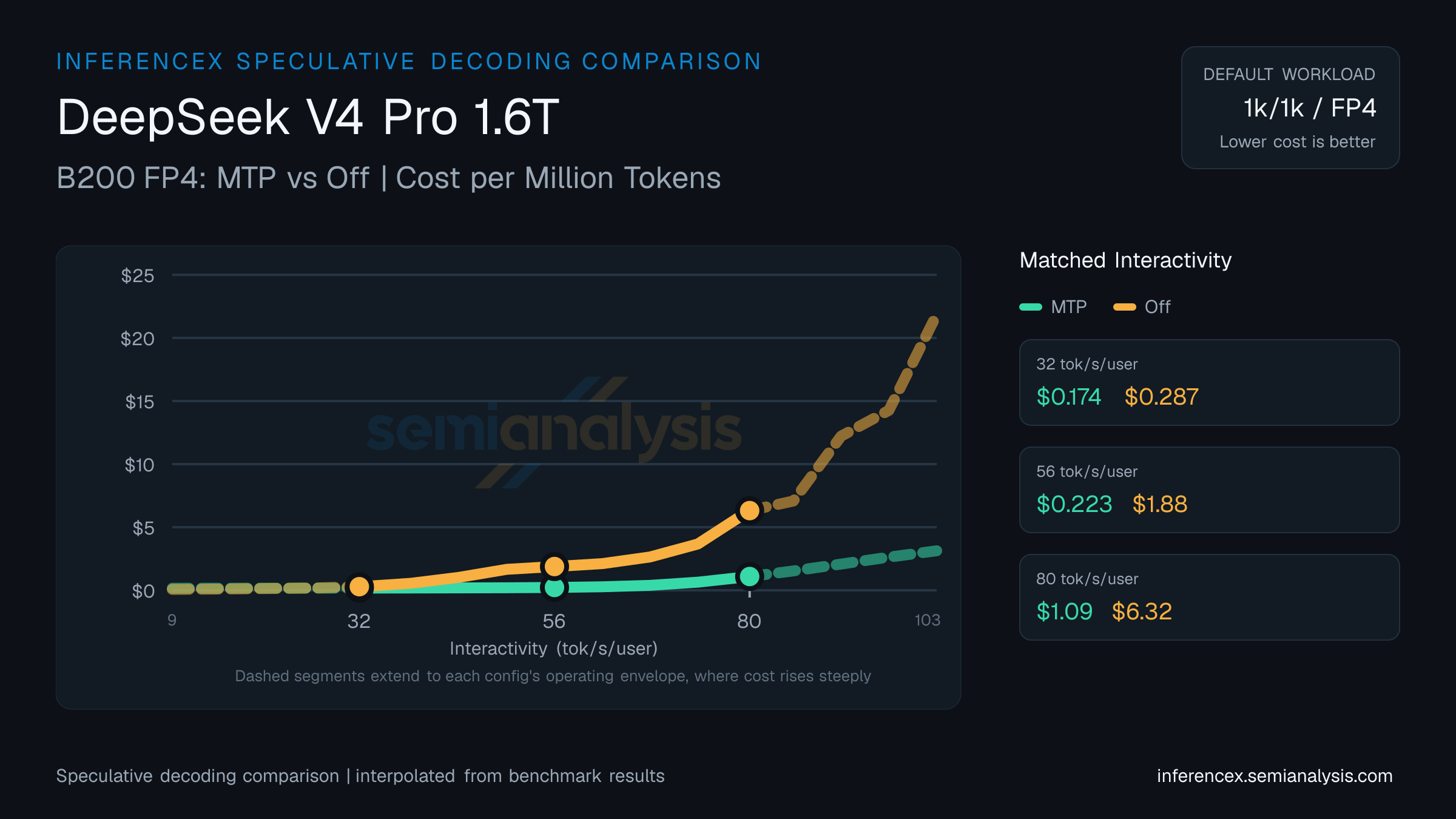

DeepSeek V4 Pro 0813 1.6T: B200 FP4 MTP versus Off speculative decoding comparison at matched interactivity levels
B200 FP4 MTP versus Off speculative decoding comparison for this page's canonical default workload
