DeepSeek R1 · Speculative Decoding

MI355X FP8: MTP vs Off Speculative Decoding

Speculative decoding comparison of MTP versus Off on MI355X FP8 (AMD CDNA 4) running DeepSeek R1. Throughput, cost, and interactivity differences across LLM workloads. Use the chart controls below to switch sequences and metrics — same interactions as the main inference chart.

MTP acceptance-rate comparability

MTP acceptance-rate implementations differ across inference engines. Points from different engines are not directly comparable on the same curve — throughput and cost at matched interactivity may reflect engine-level differences rather than pure speculative decoding gains. Interpret cross-engine comparisons with caution.

At 52 tok/s/user on DeepSeek R1 (MI355X FP8), MTP delivers 1,129 tok/s/chip at $0.37 per million tokens; Off delivers 479 tok/s/chip at $0.87. MTP delivers 135% more tok/s/chip on the same chip, which makes it 58% cheaper per token. Speculative decoding accepts draft tokens to reduce per-token latency — gains vary by workload and prompt distribution.

MTP posts 643 tok/s/chip for $0.65 per million tokens at 82 tok/s/user on DeepSeek R1 (MI355X FP8); Off posts 212 tok/s/chip for $1.96. MTP delivers 3.0× the tok/s/chip on the same chip, which makes it 67% cheaper per token. Draft-token acceptance rates determine whether speculative decoding helps or hurts at a given concurrency level.

Throughput at 113 tok/s/user on DeepSeek R1 (MI355X FP8): MTP hits 317 tok/s/chip, Off hits 80. Costs per million tokens land at $1.31 and $5.21 respectively. MTP delivers 4.0× the tok/s/chip on the same chip, which makes it 75% cheaper per token. Speculative decoding trades extra compute on draft tokens for fewer decoding steps — the payoff depends on sequence length and batch size. (Numbers reflect this URL's pinned 1k/1k · fp8 workload — changing sequence or model updates both the table and chart; the table stays pinned to this page's precision, so precision toggles in the controls affect the chart only.)

Interpolated from real benchmark data. Edit target interactivity values below to compare at different operating points.

Metric
Interactivity (tok/s/user)
Interactivity (tok/s/user)
Interactivity (tok/s/user)
Throughput (tok/s/chip)
MTP1,129Off479
MTP643Off212
MTP317Off80
Cost ($/M tok)
MTP$0.37Off$0.87
MTP$0.65Off$1.96
MTP$1.31Off$5.21
tok/s/MW
MTP540,021Off229,350
MTP307,677Off101,496
MTP151,854Off38,273
Concurrency
MTP~315Off~82
MTP~31Off~16
MTP~11Off~5

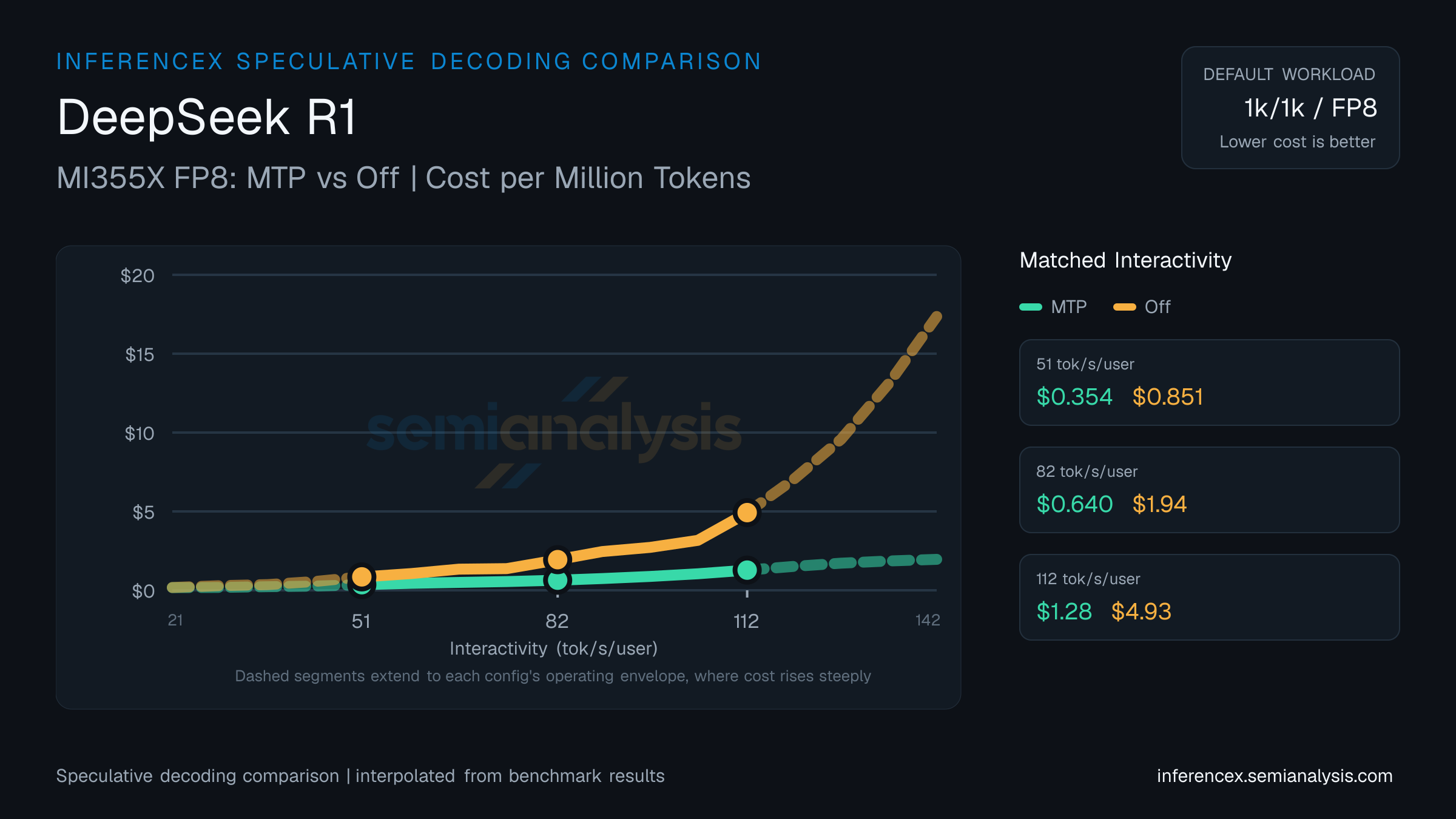

DeepSeek R1: MI355X FP8 MTP versus Off speculative decoding comparison at matched interactivity levels
MI355X FP8 MTP versus Off speculative decoding comparison for this page's canonical default workload
